"TRANSTECHNOLOGY" produces
Tensioners U-shaped fastening element
The tensioner is an integral part of fender system structures, ensuring a strong and reliable connection of elements during installation and operation. It is used in shipbuilding, berthing structures, ports, and industrial facilities where high resistance to dynamic loads and aggressive environments is required.
The product is made of high-strength galvanized steel, which guarantees:
- resistance to corrosion and sea moisture;
- preservation of strength during long-term operation;
- mechanical resistance to impacts and vibrations;
- reliable fixation during the installation of structures of any complexity.
Request a Commercial Proposal

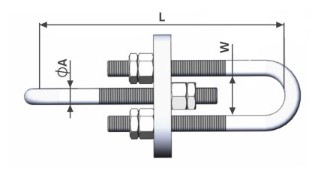

| Chain Size, A, mm | Thread | Length, L, mm | Width, W, mm | Weight, kg |
| 16 | M16 | 200-240 | 40 | 3 |
| 18 | M18 | 220-280 | 45 | 4 |
| 20 | M20 | 235-305 | 50 | 5 |
| 22 | M22 | 265-345 | 56 | 7 |
| 22 | M24 | 280-370 | 60 | 9 |
| 25 | M27 | 310-420 | 68 | 12 |
| 30 | M30 | 345-465 | 76 | 17 |
| 32 | M33 | 385-525 | 82 | 21 |
| 35 | M36 | 420-560 | 90 | 27 |
| 40 | M42 | 480-650 | 106 | 45 |
| 45 | M48 | 545-745 | 120 | 64 |
| 50 | M52 | 595-805 | 130 | 80 |
| 55 | M56 | 640-880 | 140 | 99 |
| 60 | M60 | 685-945 | 150 | 122 |
| 60 | M64 | 730-1010 | 160 | 147 |

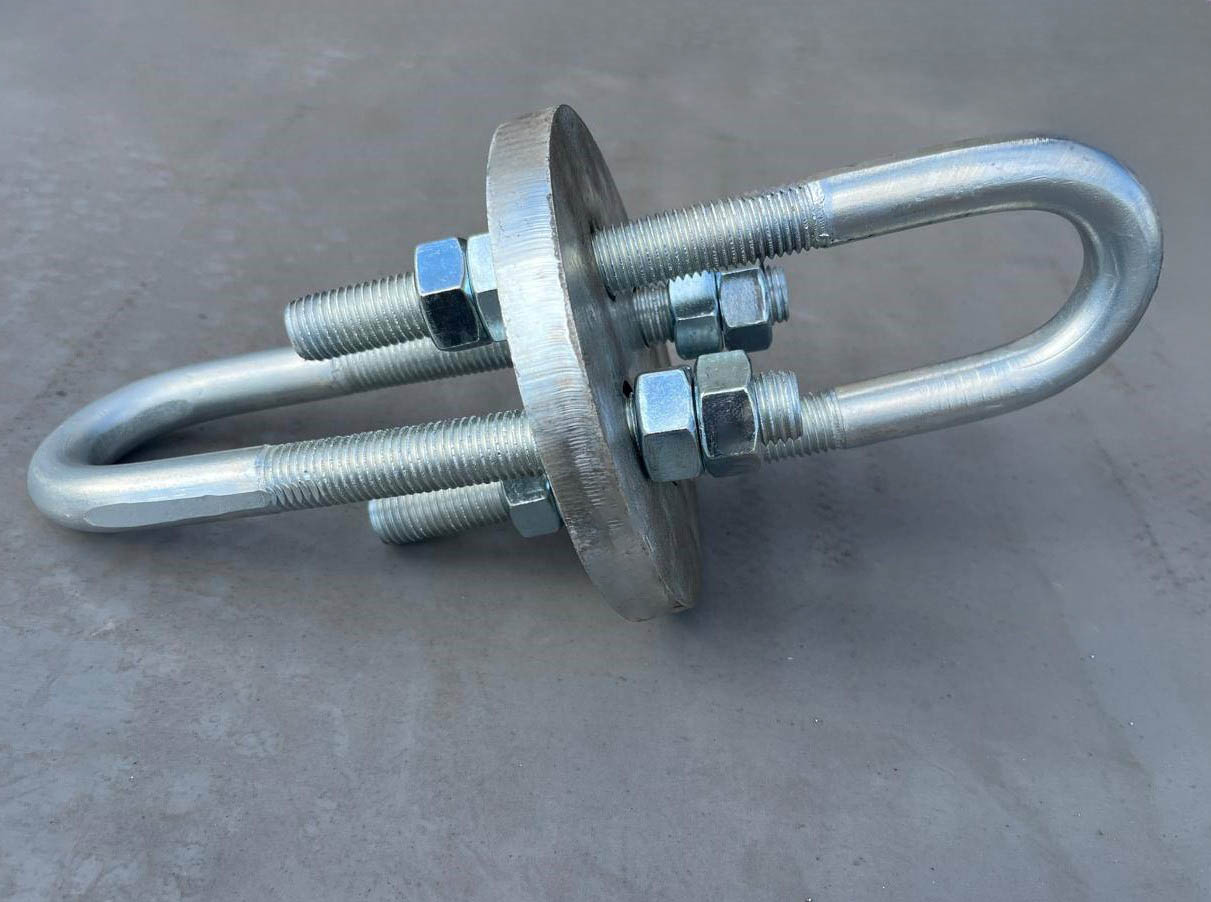

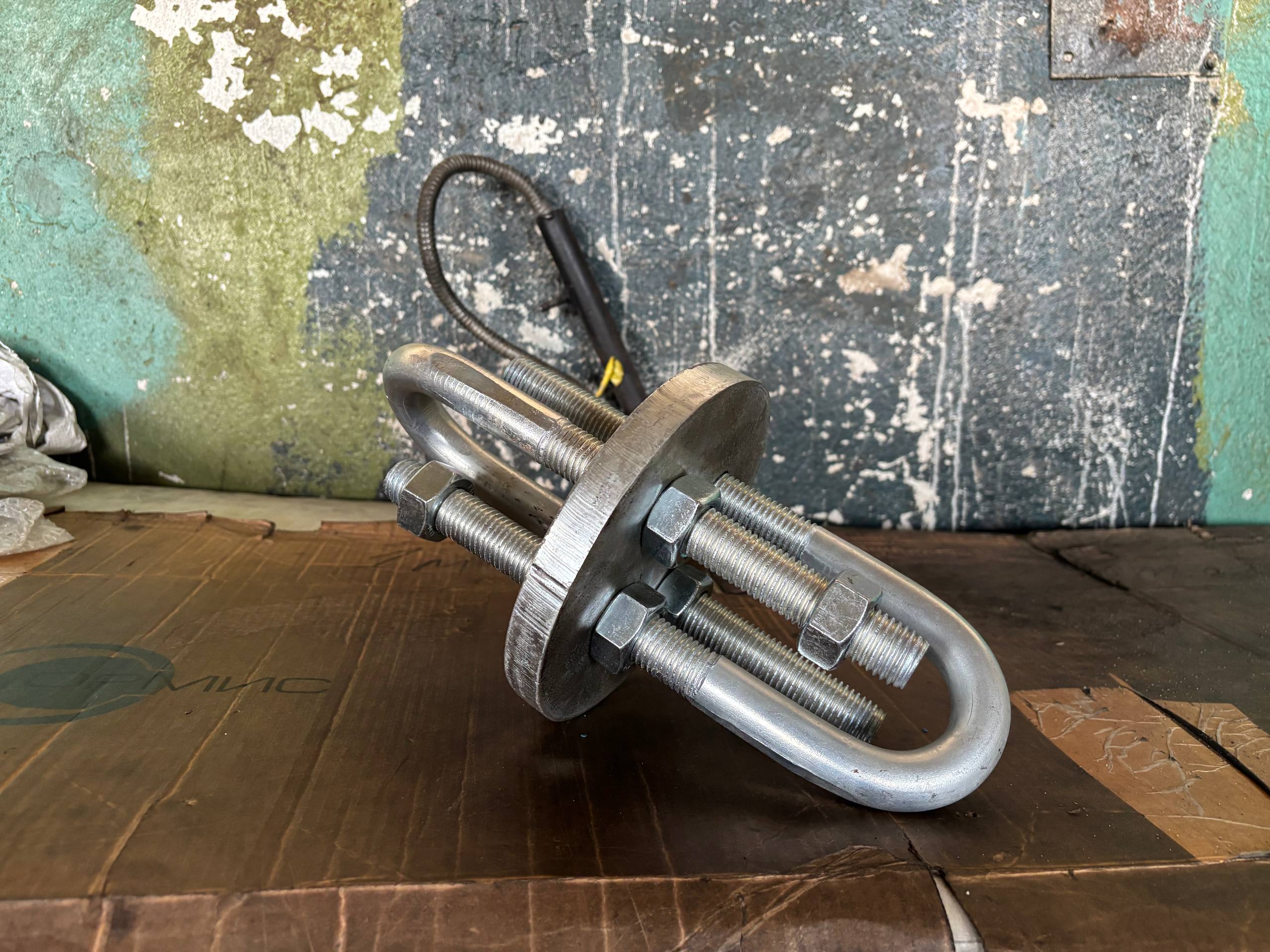

Photos of Tensioners: U-shaped Fastening Element
