Pneumatic Mooring Fenders - TransTechnology Company

The fender is designed to cushion the impact of ships' sides during mooring and joint parking of moored vessels during cargo handling operations in open sea conditions at ambient air temperatures from minus 30 to plus 45°C and sea swell up to 7 points. During mooring operations, the fender remains floating in a suspended state between the sides of the mooring vessels.

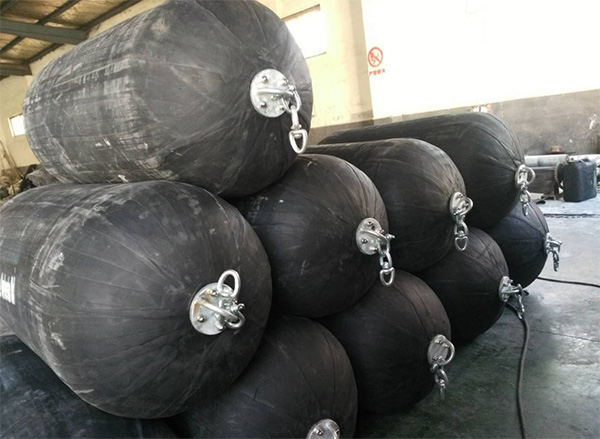

Pneumatic mooring fenders consist of a rubber-fabric shell of cylindrical shape with spherical ends, which have openings hermetically sealed with metal covers, along with components for filling the fender with air and securing it.

The structure of the fender shell wall consists of a power frame made up of layers of nylon cord, an inner and outer sealing rubber layer.

Get a commercial offer

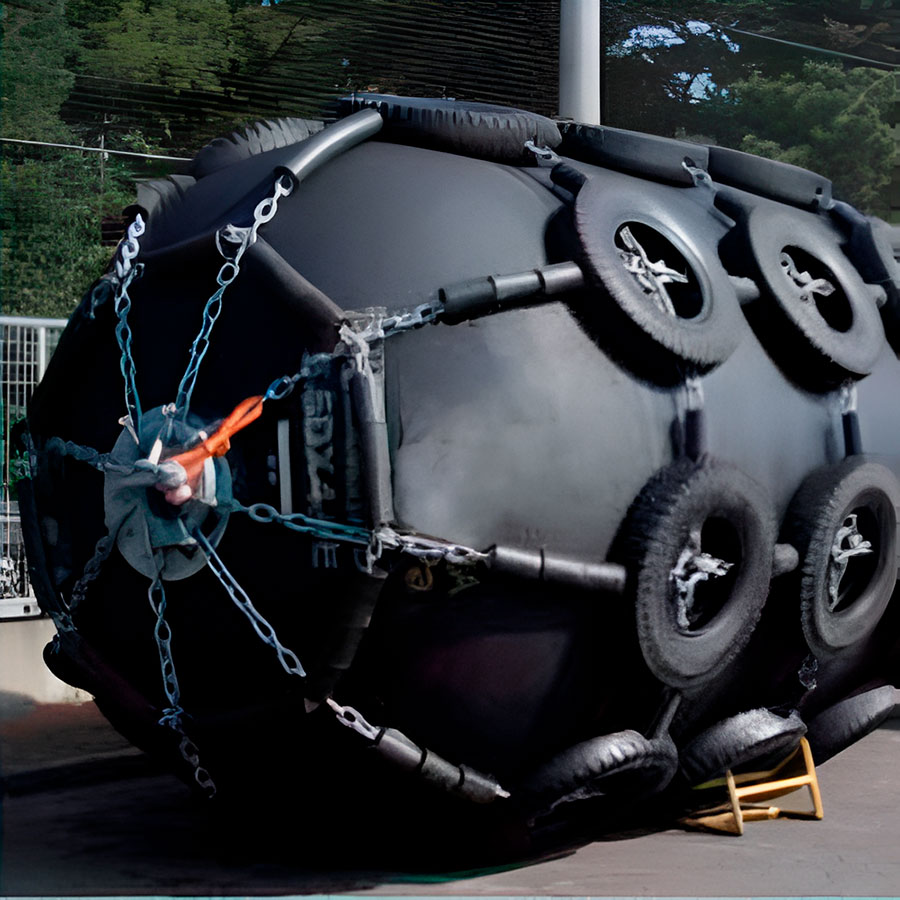

The fender can be equipped with a tire-chain net.

Standard sizes of pneumatic fenders:

Overall dimensions	Working pressure	Guaranteed energy absorption (E)	Reaction force (R)	Pressure on the ship's hull (p)	Test pressure
(mm x mm)	(kPa)	(kNm)	(kN)	(kPa)	(kPa)
500 x 1000	50	6	64	132	200
600 x 1000	50	8	74	126	200
700 x 1000	50	17	137	135	200
1000 x 1500	50	32	182	122	200
1000 x 2000	50	45	257	132	200
1200 x 2000	50	63	297	126	200
1350 x 2500	50	102	427	130	200
1500 x 3000	50	153	579	132	200
1700 x 3000	50	191	639	128	200
2000 x 3500	50	308	875	128	200
2500 x 4000	50	663	1381	137	250
2500 x 5500	50	943	2019	148	250
3300 x 4500	50	1175	1884	130	250
3300 x 6500	50	1814	3015	146	250
3300 x 10600	50	3067	5257	158	250
4500 x 9000	50	4752	5747	146	250
4500 x 12000	50	6473	7984	154	250

Non-standard sizes of pneumatic fenders:

Габаритные размеры	Рабочее давление	Гарантированное поглощение энергии (E)	Сила реакции (R)	Давление на корпус судна (p)	Тестовое давление
(мм х мм)	(kPa)	(kNm)	(kN)	(kPa)	(kPa)
400 х 1500	50	6	87	151	200
600 х 1200	50	10	93	132	200
800 х 1200	50	16	116	122	200
1200 х 1800	50	55	262	122	200
1350 х 3500	50	152	641	141	200
1500 х 2500	50	123	464	126	200
2000 х 3000	50	255	727	122	200
2000 х 4500	50	418	1188	137	200
2500 х 7700	50	1350	2951	157	250
3300 х 8600	50	2443	4138	154	250
4500 х 6400	50	3238	3796	133	250
