ME-Element Fenders - TransTechnology Company

All fendering systems use one or more pairs of energy-absorbing elements and a front panel. The panel is a structural component of the fender system that is directly attached to the ME elements and easily handles constant loads.

The UHMW-PE coating is very gentle on vessels. It adapts to the shape of the hull, leaving no marks on the paint. UHMW-PE has very low friction, which reduces the load on the fender and its mountings.

Get a commercial offer

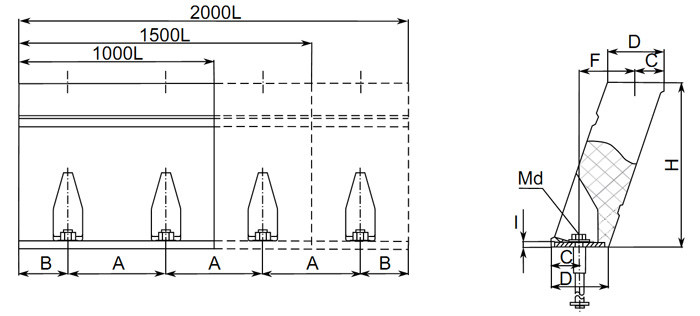

Product Dimensions (unit of measurement: mm, kg/m)

	H	A	B	C	D	I	F	Md	Weight
ME 500	500	500	250	87	158	20	142	M30	121
ME 600	600	500	250	87	188	20	199	M30	172
ME 750	750	500	250	118	235	26	230	M36	253
ME 800	800	500	250	129	250	26	240	M36	311
ME 1000	1000	500	250	162	322	31	310	M42	473
ME 1250	1250	500	250	202	401	36	388	M48	720
ME 1450	1450	500	250	228	454	41	454	M48	919
ME 1600	1600	500	250	257	500	55	480	M56	1105

Nominal Deformation

	Nominal deformation 57.5%
	RO		RH
	R:KN	E:KNm	R:KN	E:RNm
ME 500	187	43	267	61
ME 600	224	62	320	89
ME 750	282	96	402	137
ME 800	299	110	428	157
ME 1000	374	172	534	245
ME 1250	467	268	667	383
ME 1450	543	361	775	516
ME 1600	599	440	855	628

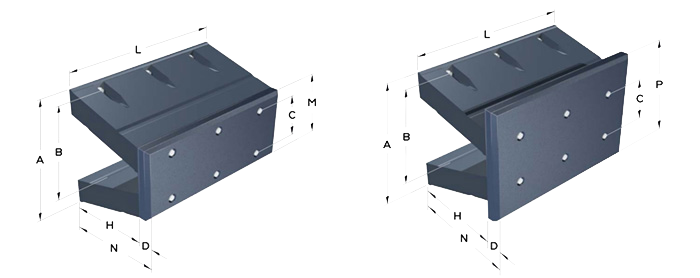

H	D (min)	A	B	C	N	M	P	Fastening
ME 500	90	774	600	316	590	460	660	M30
ME 600	90	894	720	322	690	530	800	M30
ME 750	100	1136	900	440	850	680	1010	M36
ME 800	100	1218	960	480	900	730	1170	M36
ME 1000	120	1524	1200	580	1120	900	1330	M42
ME 1250	120	1904	1500	724	1370	1140	1660	M48
