Cylindrical Mooring Fenders - TransTechnology Company

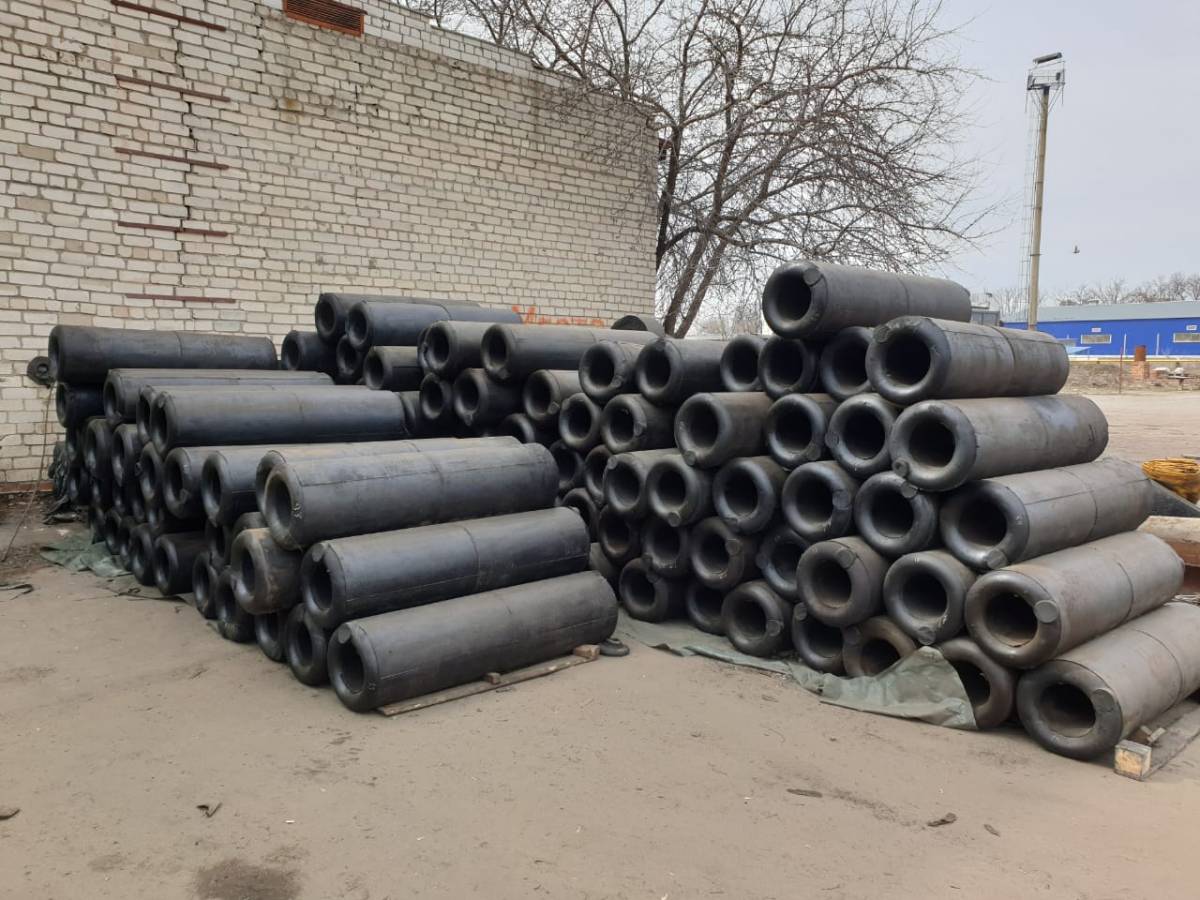

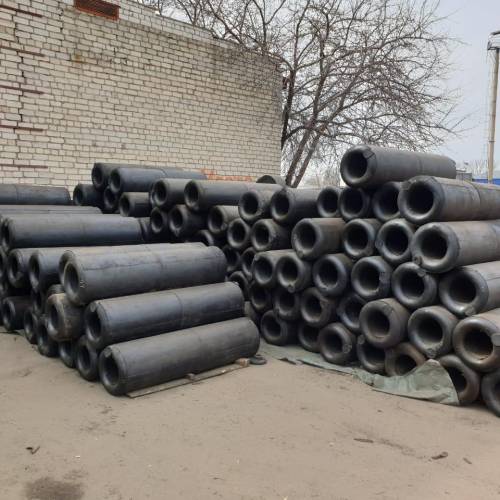

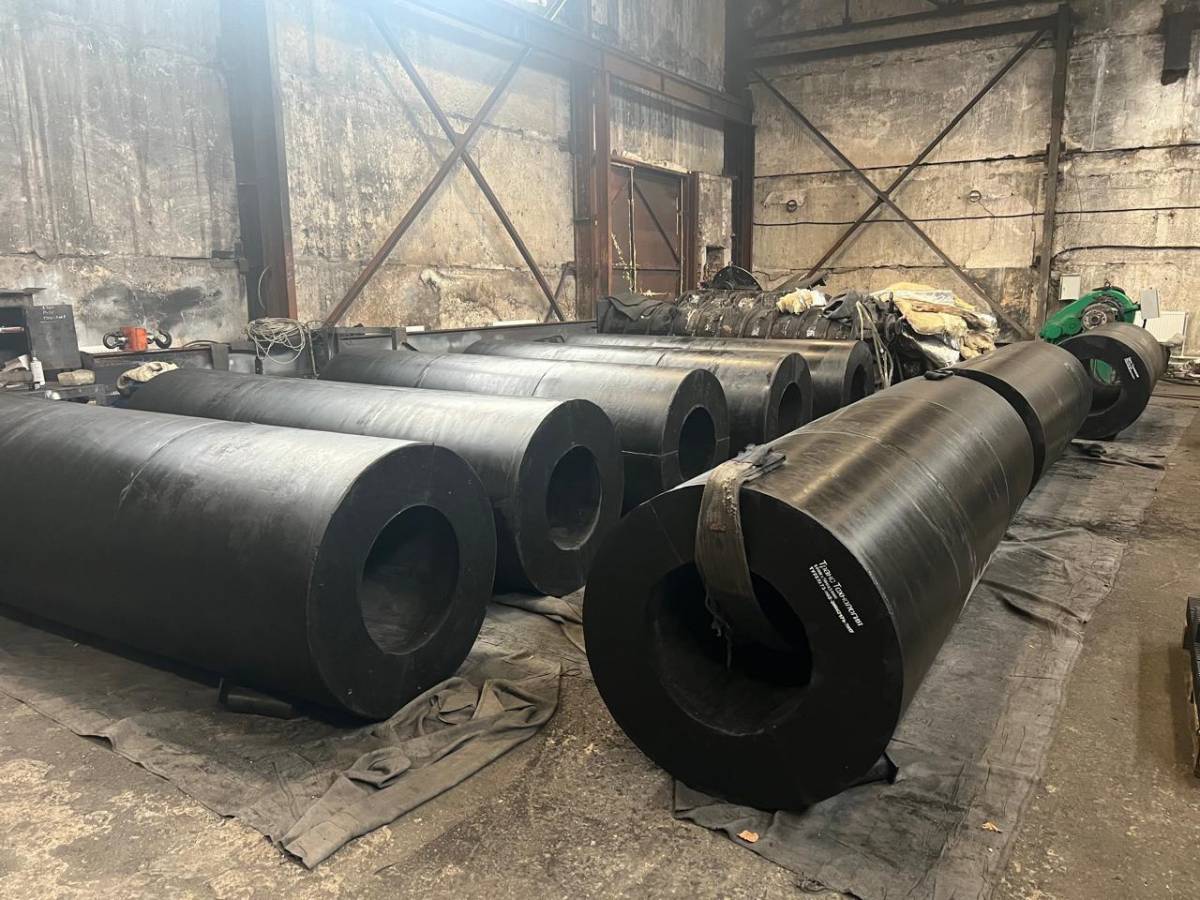

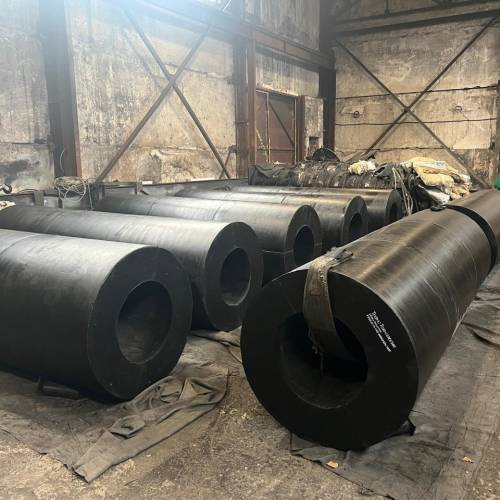

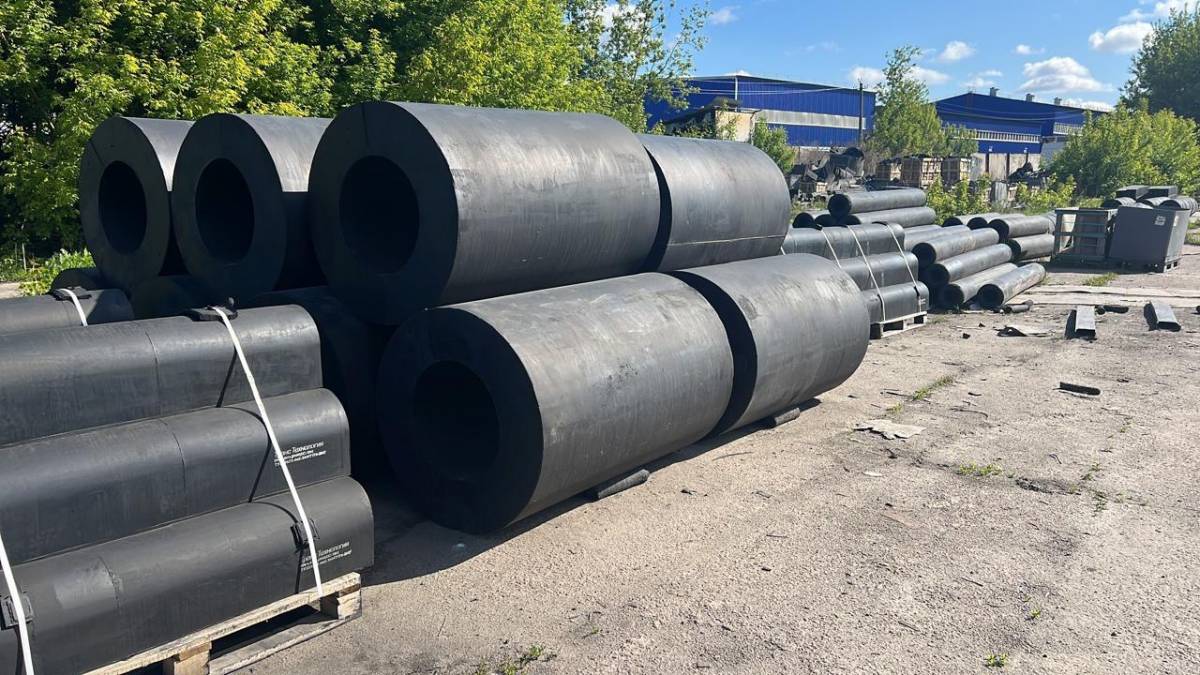

Cylindrical mooring fenders are manufactured at our facility from high-quality rubber compound group B(C) using an extrusion method (machine molding) according to Technical Specifications TU 22.19.73-002-30867179-2017. The product is available in stock.

Get a commercial offer

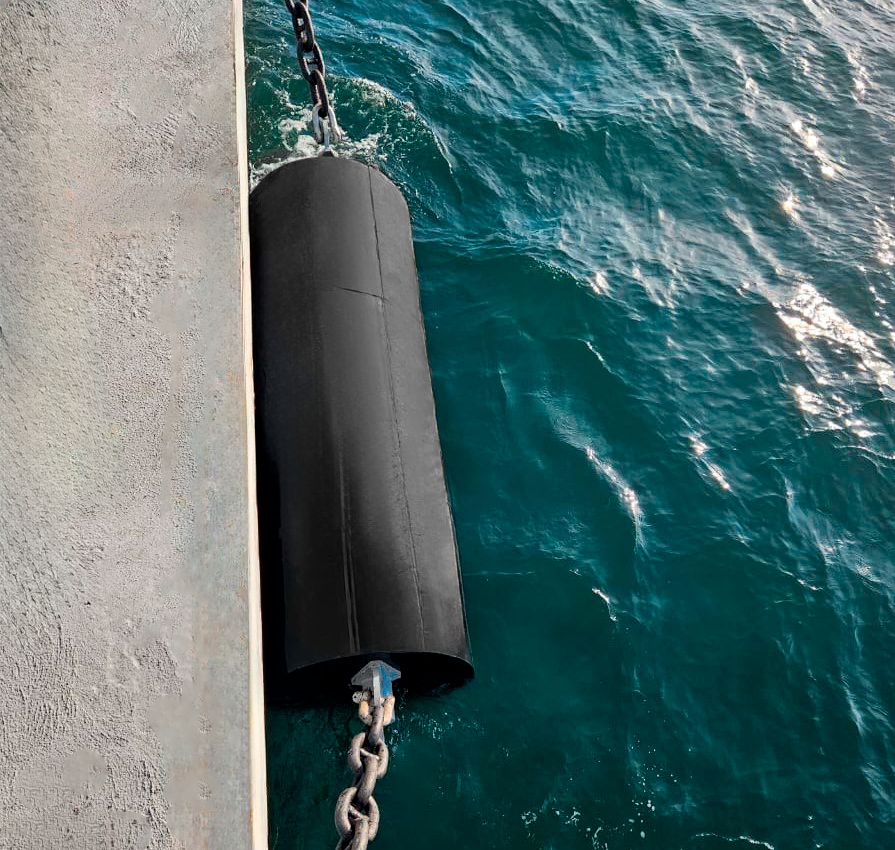

Cylindrical mooring fenders – cylindrical fender devices used worldwide. They have a simple shape that ensures easy installation. Due to their reaction force and energy absorption, they are ideal for docks serving both large and small vessels. Cylindrical fender devices are mounted horizontally or vertically on dock walls in one or two rows. The placement of fenders on the dock depends on the dock structure, mooring conditions, and the possibility of vessel docking.

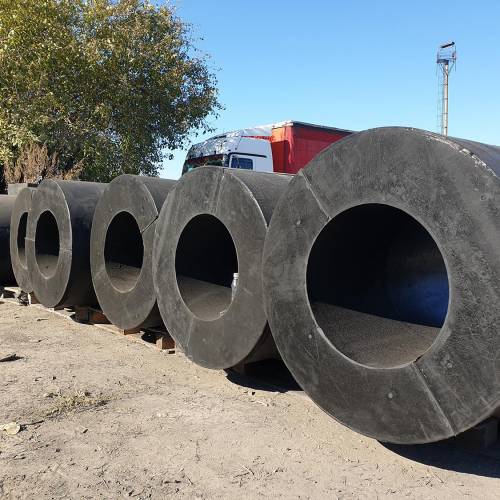

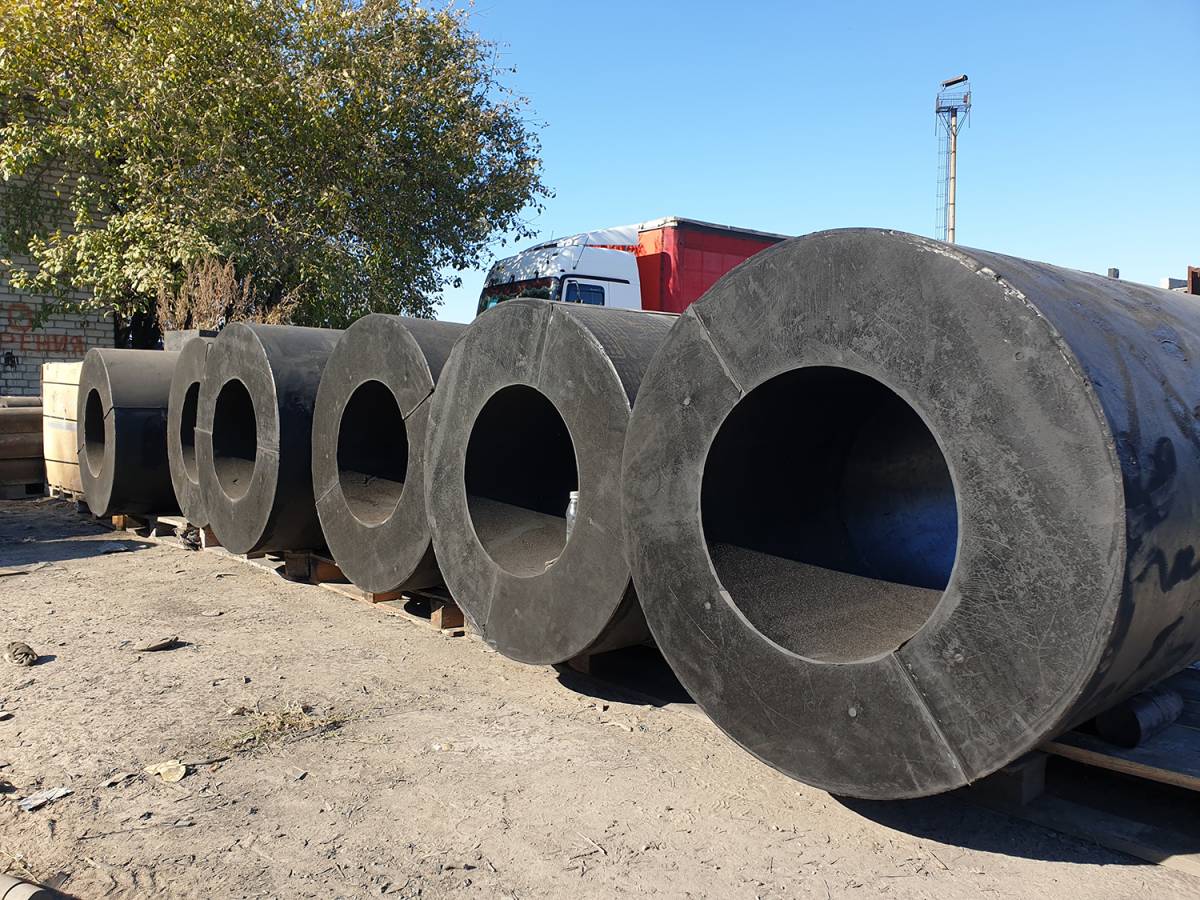

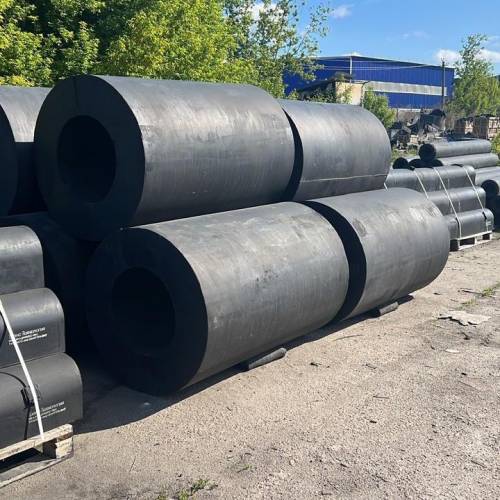

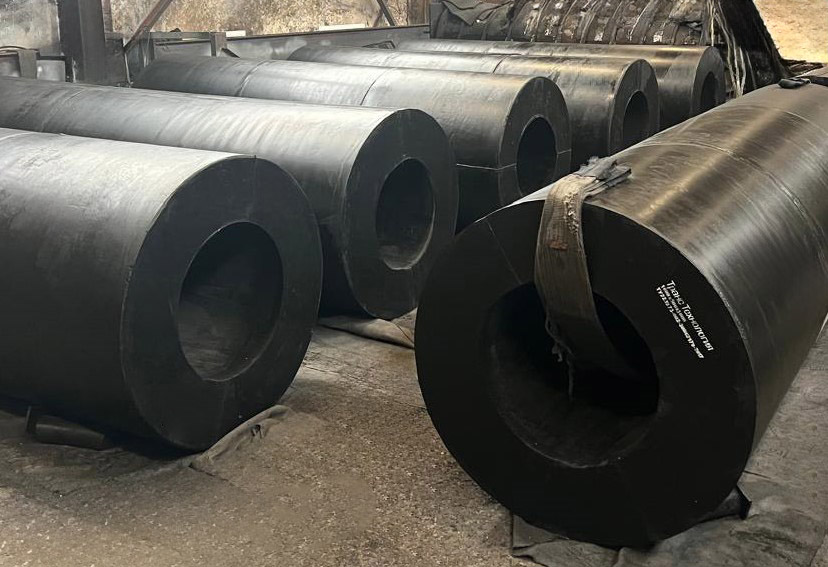

Description: Cylindrical mooring fenders are rubber tubes of various diameters. They are operational in a marine environment with short-term exposure to oil and petroleum products at ambient temperatures ranging from -45 to +60°C.

Sizes and specifications

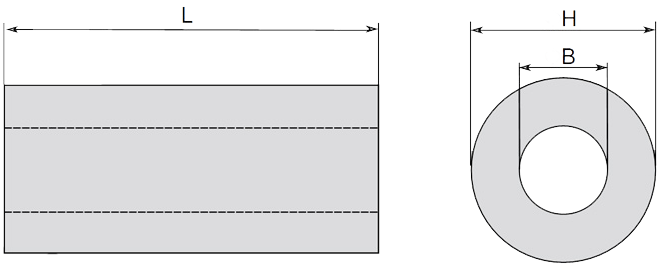

HBL (mm)	R (kN/m)	E (kNm/m)	Weight, (kg/m)
200х100х2000	86	3.3	33
200х100х3000	86	3.3	33
300х150х1000	129	7.4	67
300х150х2000	129	7.4	67
300х150х3000	129	7.4	67
400х200х1000	172	13.1	120
400х200х1500	172	13.1	120
400х200х1600	172	13.1	120
400х200х2000	172	13.1	120
400х200х2500	172	13.1	120
400х200х2700	172	13.1	120
400х200х3000	172	13.1	120
400х200х4000	172	13.1	120
500х250х1500	275	28	200
500х250х2000	275	28	200
500х250х3000	275	28	200
600х300х1000	330	40	240
600х300х2000	330	40	240
600х300х3000	330	40	240
1000х500х1500	550	112	800
1000х500х2000	550	112	800
1000х500х3000	550	112	800
1200х600х1500	660	162.0	1100
1200х600х2000	660	162.0	1100
1200х600х2500	660	162.0	1100
