"TRANSTECHNOLOGY" produces
Bow fender cylindrical device - Transtechnologiya Company
LLC "TransTechnology" manufactures

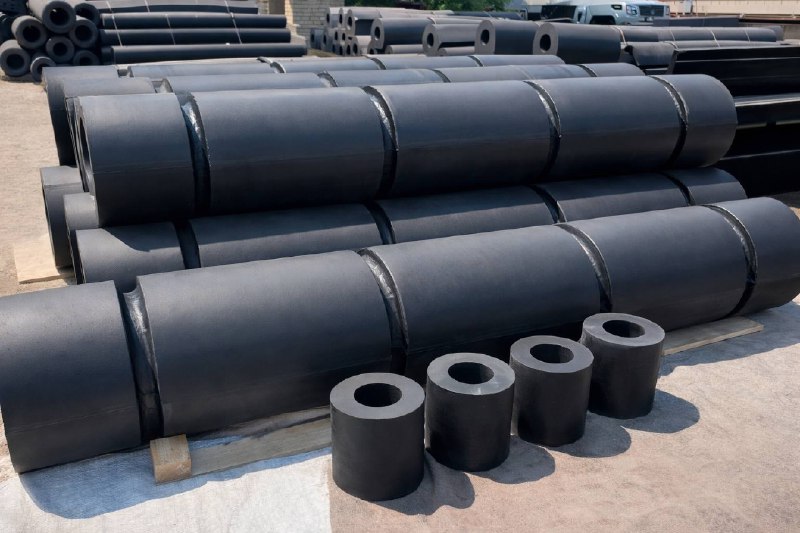

Nose cylindrical fender device which is often used as forward-pushing fenders on the bow or stern of modern tugs. Their rounded shape is ideal for working with ships that have a pronounced flare at the bow (such as container ships) and also works well when pushing vessels with flat sides.
A longitudinal chain runs through the center of the fender, and additional support is provided by straps or chains around the circumference of the fender, for which grooves are provided. Conical ends are also available as an option.
Get a commercial proposal

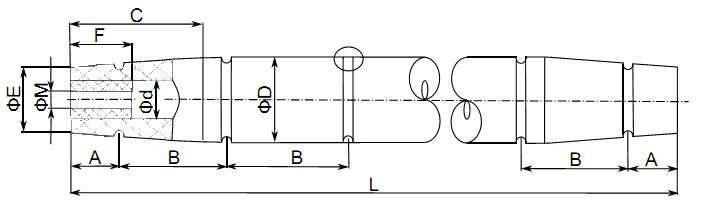

Dimensional characteristics (mm, kg)
| D*d | E | A max | B max | C | M | F | Weight, kg/m |
| 200x100 | 170 | 200 | 335 | 500 | 75 | 300 | 35 |
| 300x150 | 225 | 225 | 600 | 700 | 75 | 350 | 68 |
| 450x225 | 350 | 250 | 700 | 850 | 100 | 400 | 155 |
| 500x250 | 375 | 400 | 750 | 900 | 100 | 500 | 195 |
| 600x300 | 450 | 300 | 800 | 900 | 125 | 500 | 240 |
