"TRANSTECHNOLOGY" produces
Square fender bar

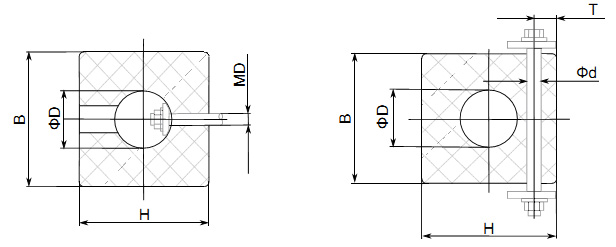

Square Bar C-shaped
Get a commercial proposal
Dimensional characteristics (mm, kg)
| B, mm | H, mm | D, mm | MD | T, mm | Ø d, mm | Weight, kg |
| 150 | 150 | 75 | M22 | 30 | 27 | 28 |
| 200 | 200 | 100 | M24 | 35 | 30 | 50 |
| 250 | 250 | 125 | M27 | 45 | 33 | 77 |
| 300 | 300 | 150 | M30 | 55 | 36 | 110 |
| 350 | 350 | 175 | M33 | 65 | 40 | 151 |
| 400 | 400 | 200 | M36 | 75 | 45 | 198 |
| 500 | 500 | 250 | M42 | 95 | 50 | 308 |
| Size | Nominal deformation 40% | |
| R:KN | E:KNm | |
| 150 | 224 | 6 |
| 200 | 298 | 11 |
| 250 | 370 | 17 |
| 300 | 447 | 25 |
| 350 | 530 | 34 |
| 400 | 590 | 44 |
| 500 | 750 | 69 |

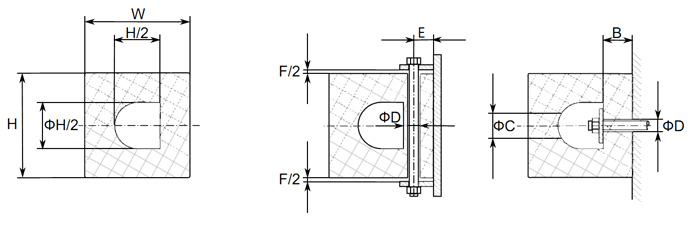

Square Bar D-shaped
Get a commercial proposal
Dimensional characteristics (mm, kg)
| H, mm | W, mm | B, mm | C, mm | D, mm | E, mm | F, mm | Anchors | Weight, kg/m |
| 150 | 150 | 37.5 | 40 | 20 | 30 | 12 | M16 | 25 |
| 200 | 200 | 50.0 | 50 | 25 | 45 | 15 | M20 | 43 |
| 250 | 250 | 62.5 | 60 | 30 | 50 | 20 | M24 | 66 |
| 300 | 250 | 62.5 | 60 | 30 | 50 | 25 | M24 | 80 |
| 300 | 300 | 75.0 | 75 | 30 | 60 | 25 | M30 | 99 |
| 400 | 400 | 100.0 | 75 | 35 | 80 | 30 | M30 | 164 |
| 500 | 500 | 125.0 | 90 | 45 | 90 | 40 | M36 | 256 |
| Size | Nominal deformation 40% | |
| R:KN | E:KNm | |
| 150 | 224 | 6 |
| 200 | 298 | 11 |
| 250 | 370 | 17 |
| 300 | 447 | 25 |
| 350 | 530 | 34 |
| 400 | 590 | 44 |
| 500 | 750 | 69 |
