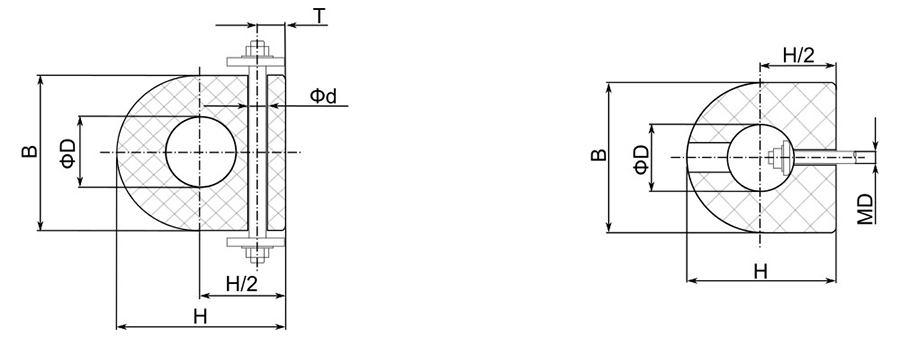

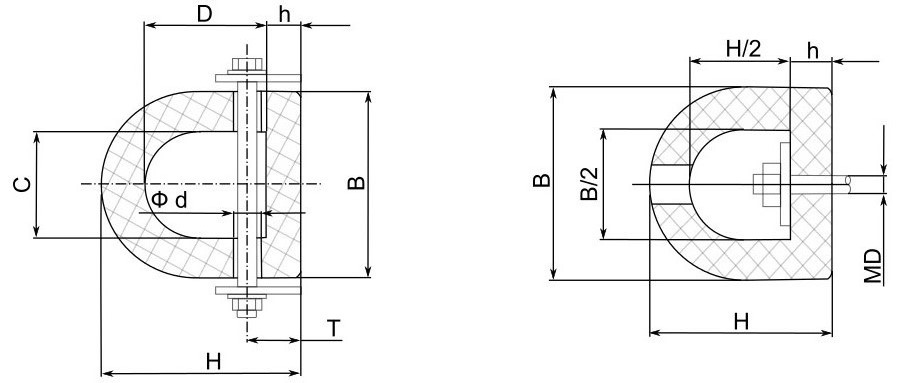

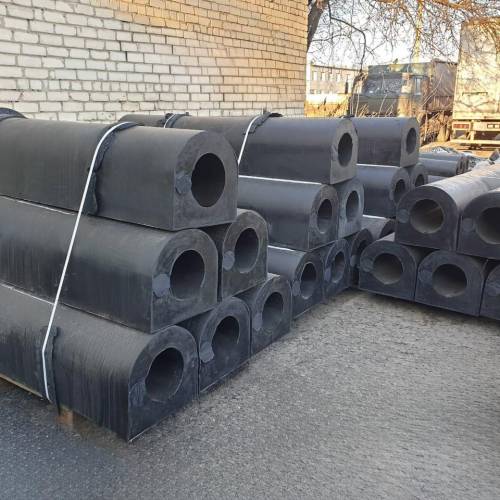

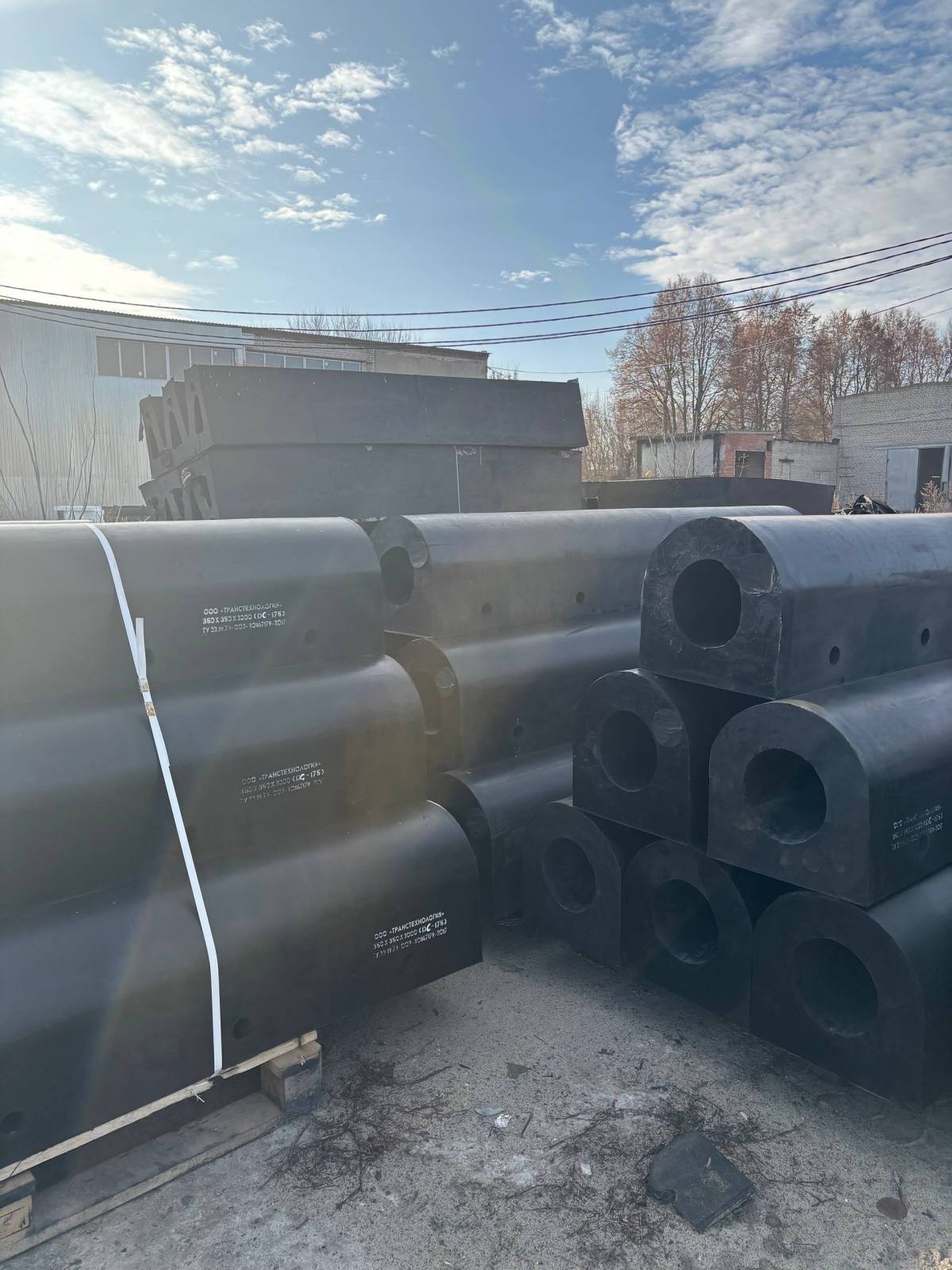

D-shaped fendering systems are widely used as fender bars on tugs and other working vessels. These bumper devices are available with both round and D-shaped inner diameters.
|
Size |
Type |
Weight, kg. |
| 80х80х2000 | DC-42 | 18 |
| 100х100х2000 | DD-50 | 20 |
| 120х90х2000 | DD-90х60 | 18 |
| 125х160х2000 | DC-50 | 61 |
| 150х150х2000 | DC-75 | 40 |
| 200х200х2000 | DD-100 | 72 |
| 250х250х3000 | DD-120 | 180 |
| 300х300х2000 | DD-150 | 180 |
| 300х300х3000 | DC-125 | 300 |
| 300х300х4000 | DC-150 | 360 |
| 350х350х2000 | DD-175 | 202 |
| 400х400х2000 | DD-200 | 320 |
| 500х500х3000 | DC200/250 | 600 |
