M-shaped and W-shaped Fenders - TransTechnology Company
Our company manufactures M-shaped and W-shaped fenders in various sizes. Fenders of this shape provide larger contact surfaces to reduce pressure on the hull. Ribbed surfaces ensure excellent grip.
W-shaped and M-shaped fenders are designed for use in the most challenging working conditions. Flexible supports allow W-shaped fendering systems to be installed along curves, almost following all bends of the hull shape.
They are used on tugs operating in open seas, icebreakers, large harbor tugs, as well as for protecting bridges and piles.
Get a commercial proposal

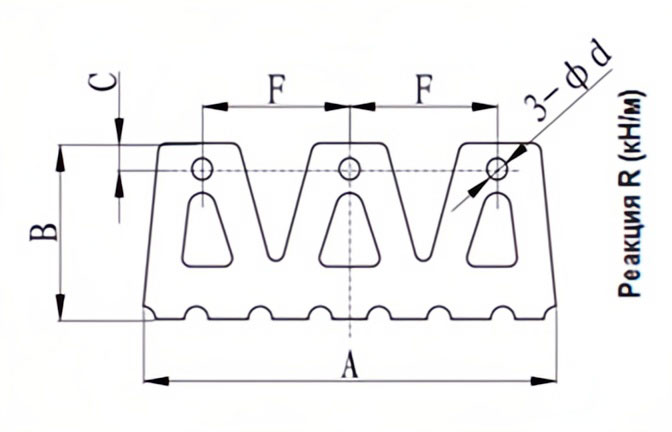

Dimensional characteristics (mm, kg)
| Size | A | B | C | d | F | Lmax | Weight, kg/m | Holes |
| M 400 | 400 | 200 | 40 | 23 | 150 | 1440 | 66 | ø 23 |
| M 500 | 500 | 250 | 50 | 27 | 190 | 2000 | 95 | ø 24 |
| M 600 | 600 | 300 | 60 | 33 | 230 | 2000 | 157 | ø 33 |

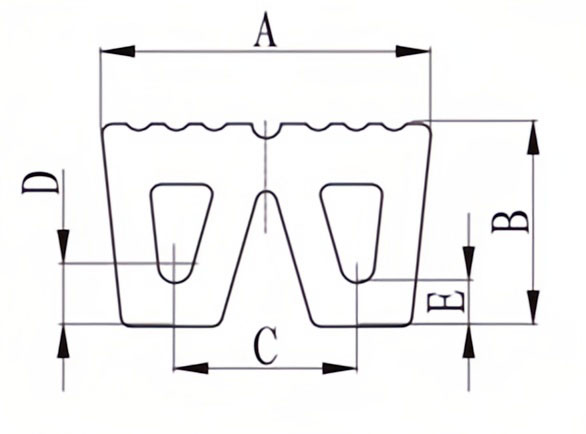

Dimensional characteristics (mm, kg)
| Size | A | B | C | D | E | Lmax | Weight, kg/m | Rod |
| W400-200 | 400 | 200 | 180 | 67 | 50 | 1000 | 80 | ø 40 |
| W480-300 | 480 | 300 | 265 | 90 | 65 | 2100 | 142 | ø 40 |
| W500-450 | 500 | 450 | 270 | 100 | 75 | 2200 | 212 | ø 40 |

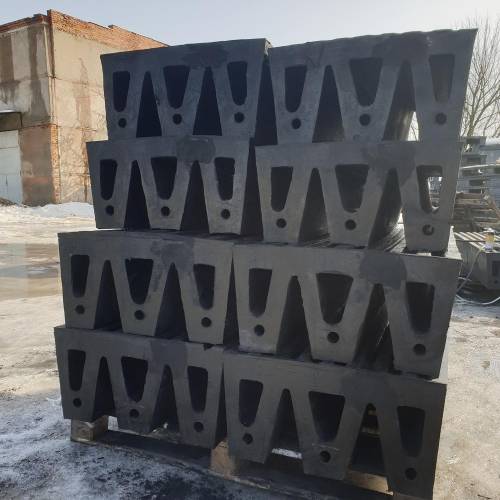

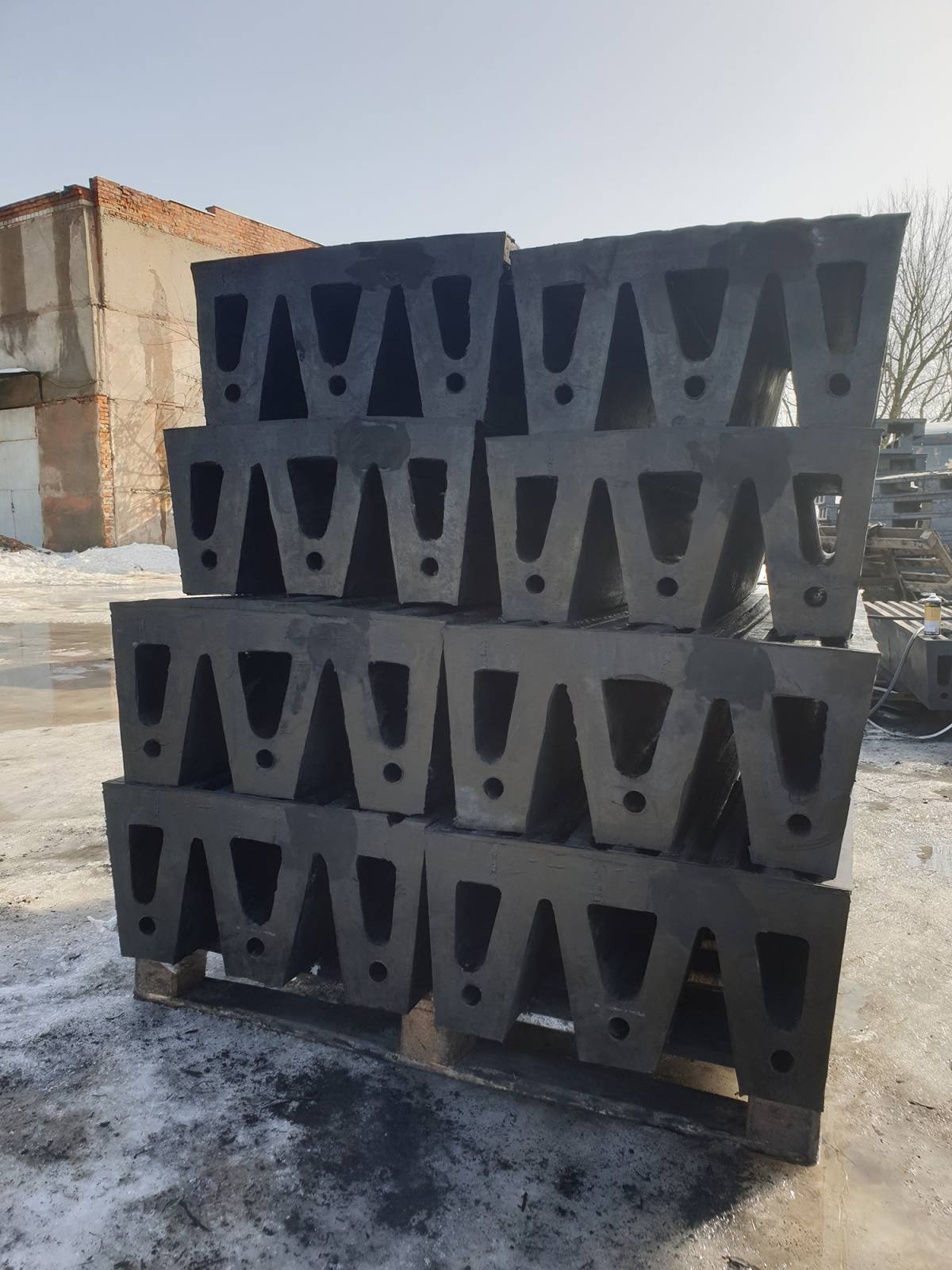

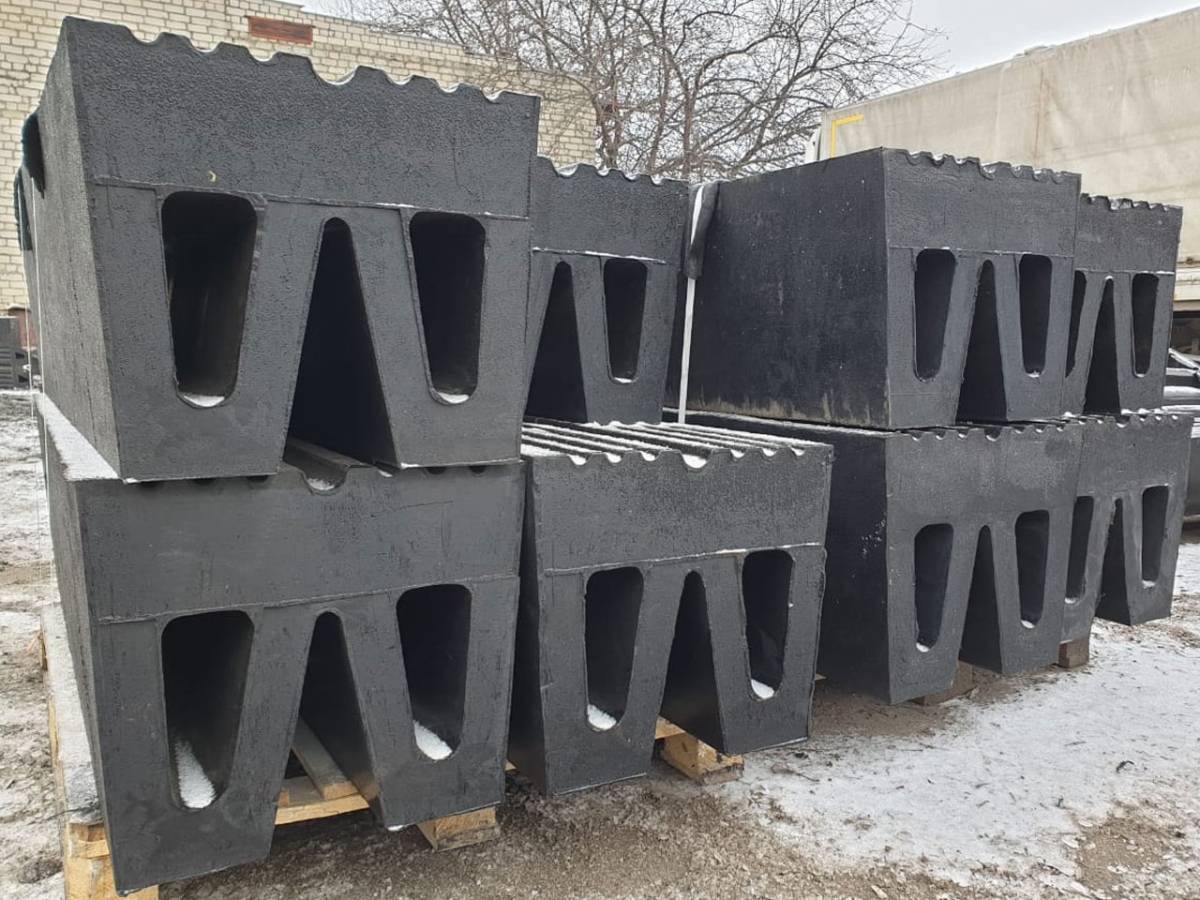

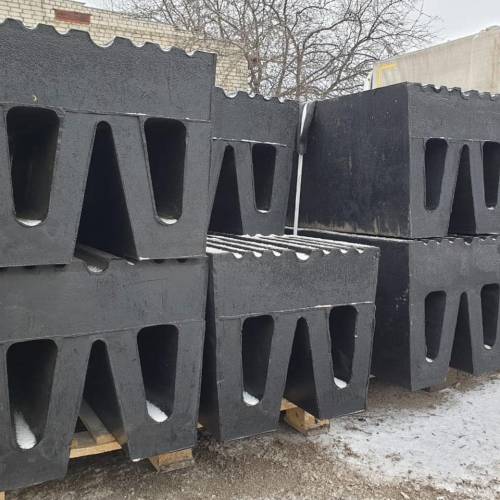

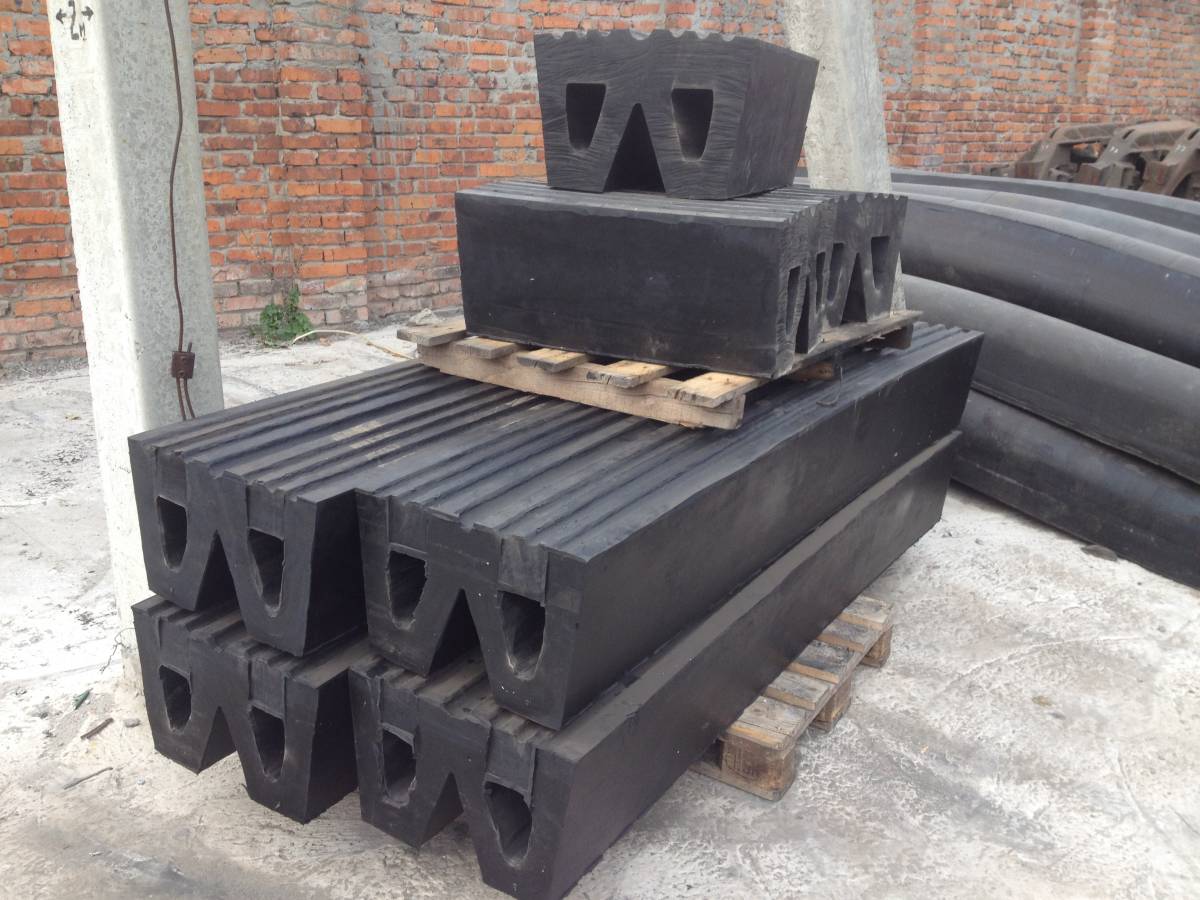

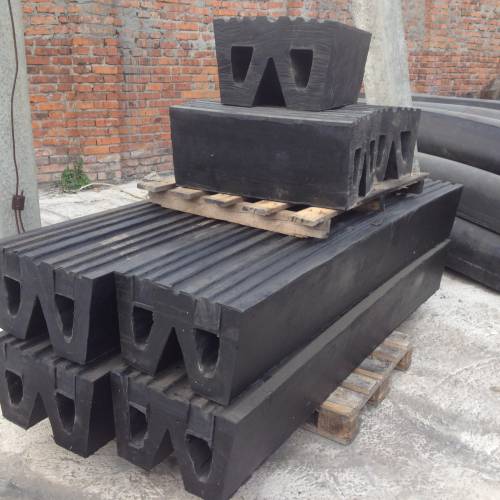

Photos of W-shaped and M-shaped fenders
