Conical Fender Devices - TransTechnology Company

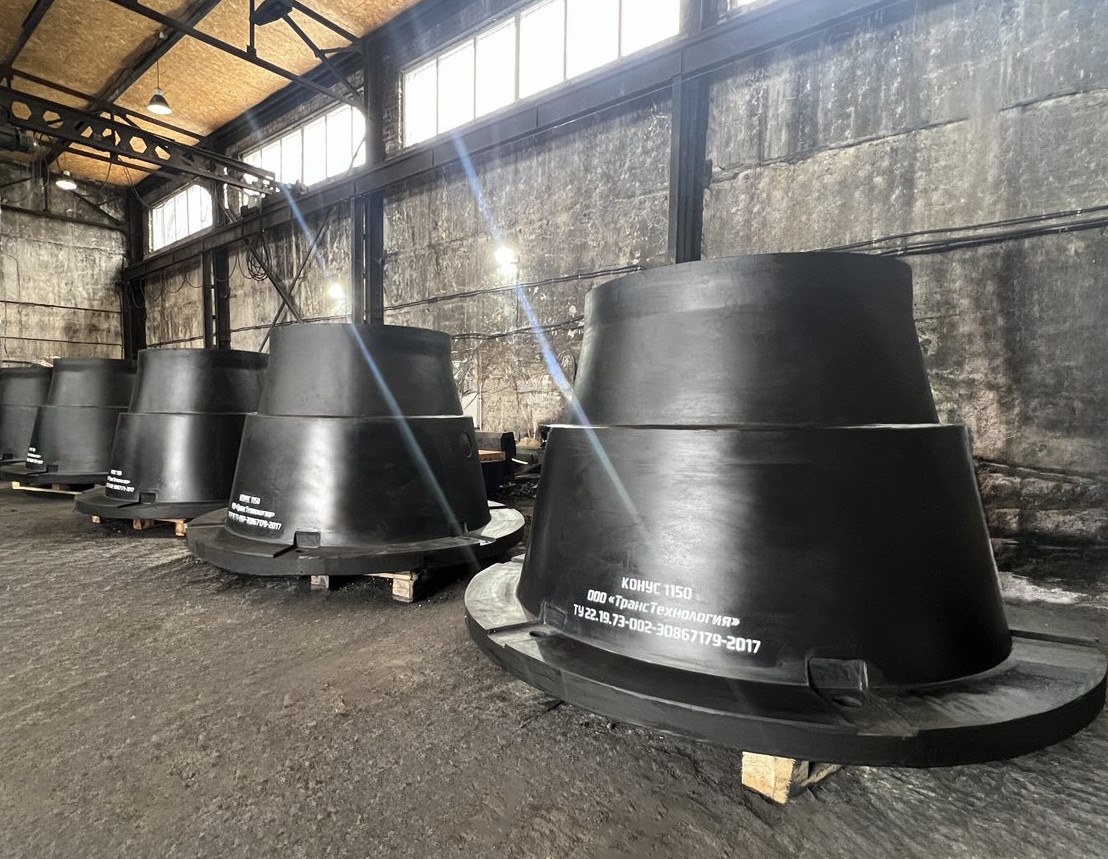

Fender devices of the «Cone» type - represent the latest generation of fenders with optimal performance and efficiency.

The conical shape of the body makes the device extremely stable at large compression angles and provides excellent shear strength. With overload stops, the fender becomes even more durable.

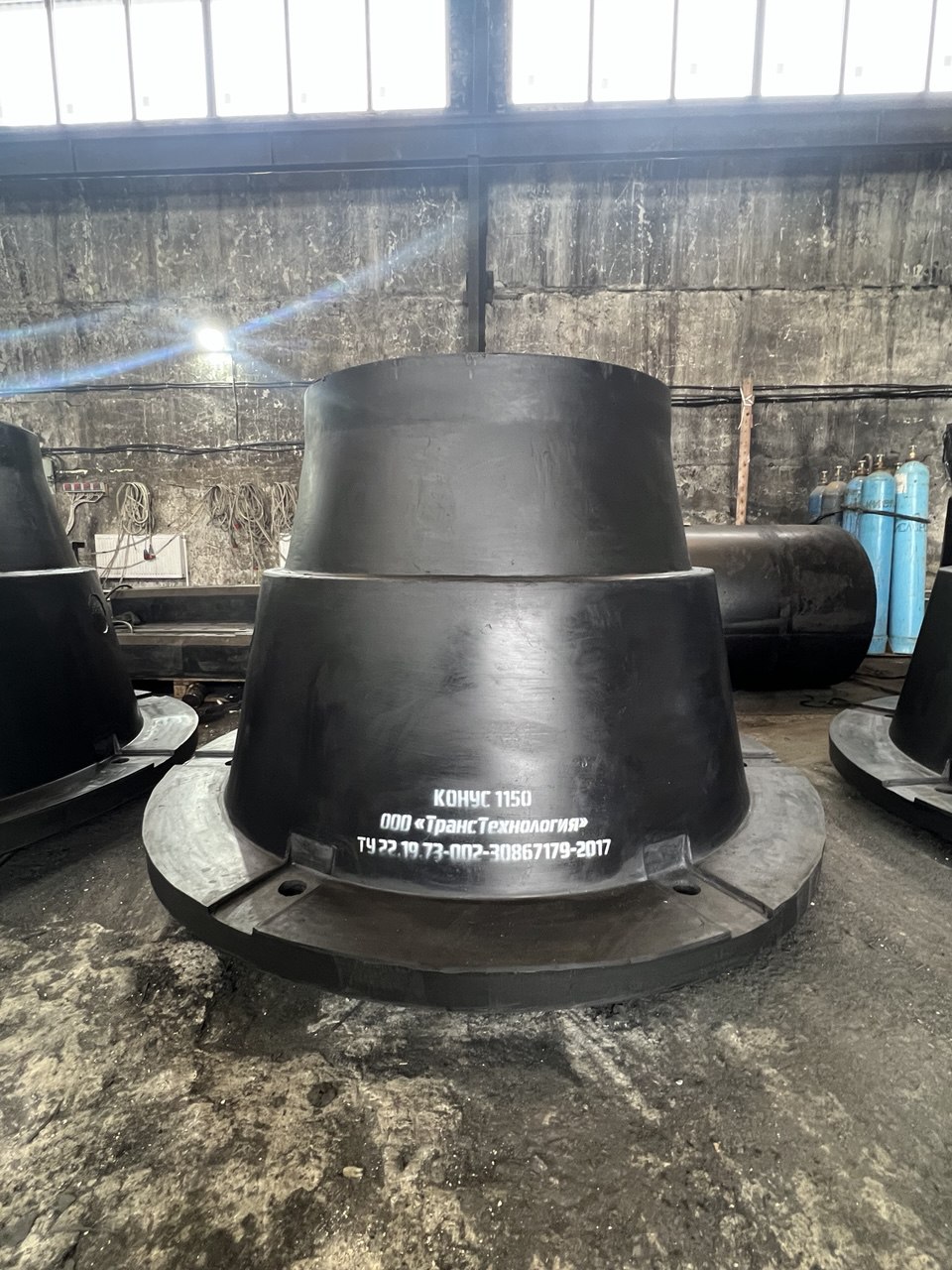

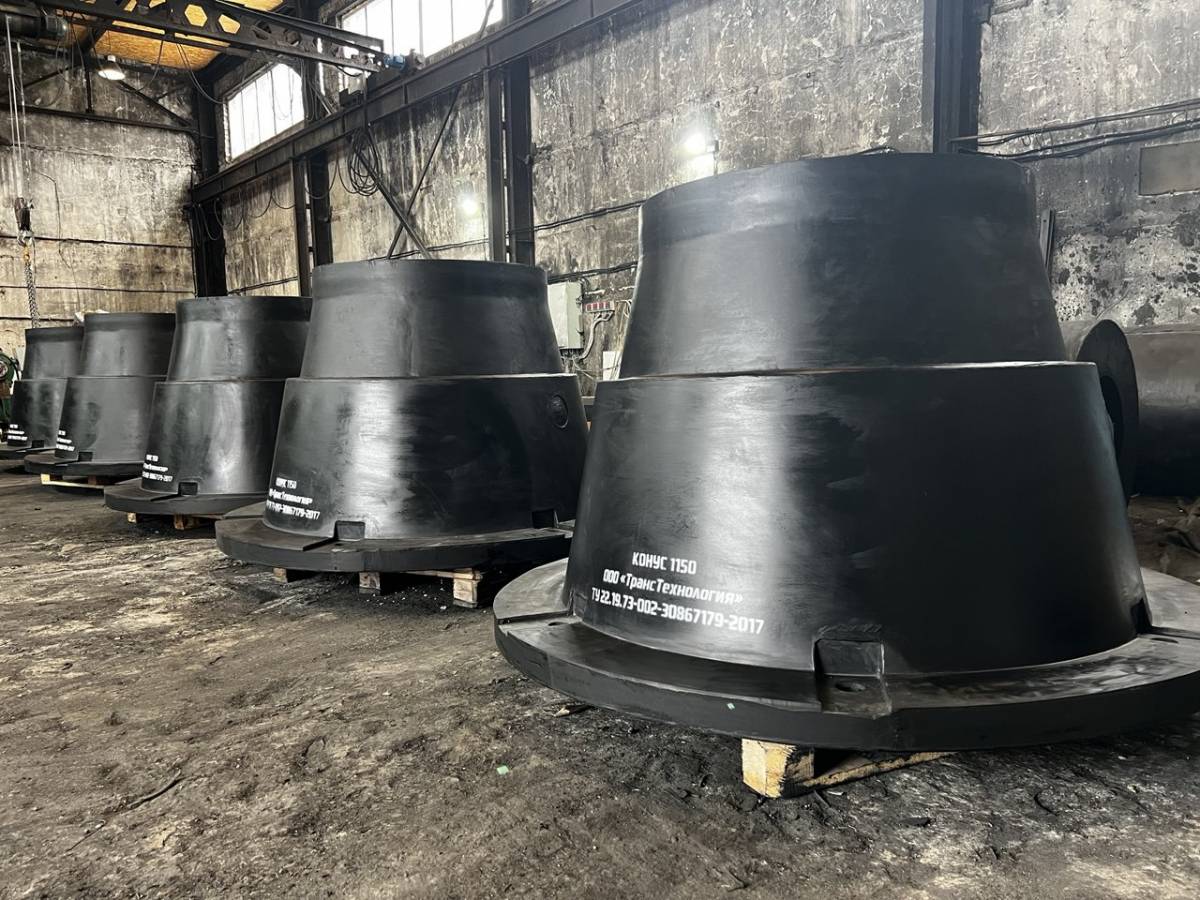

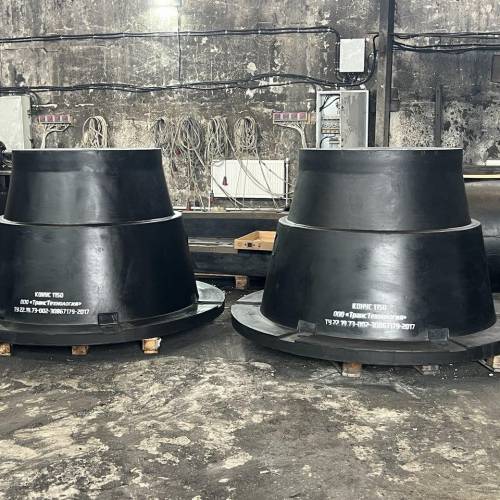

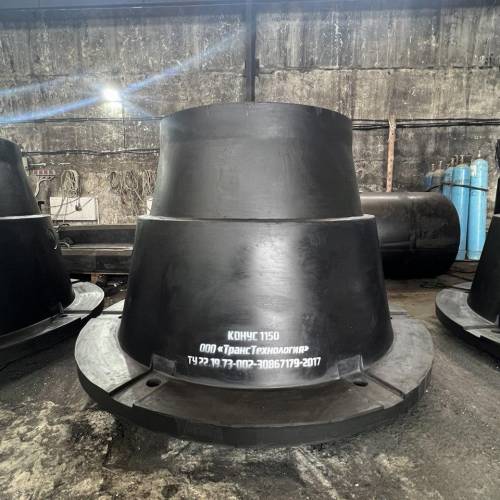

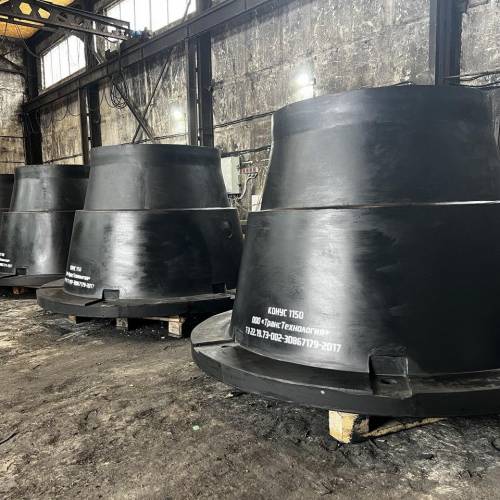

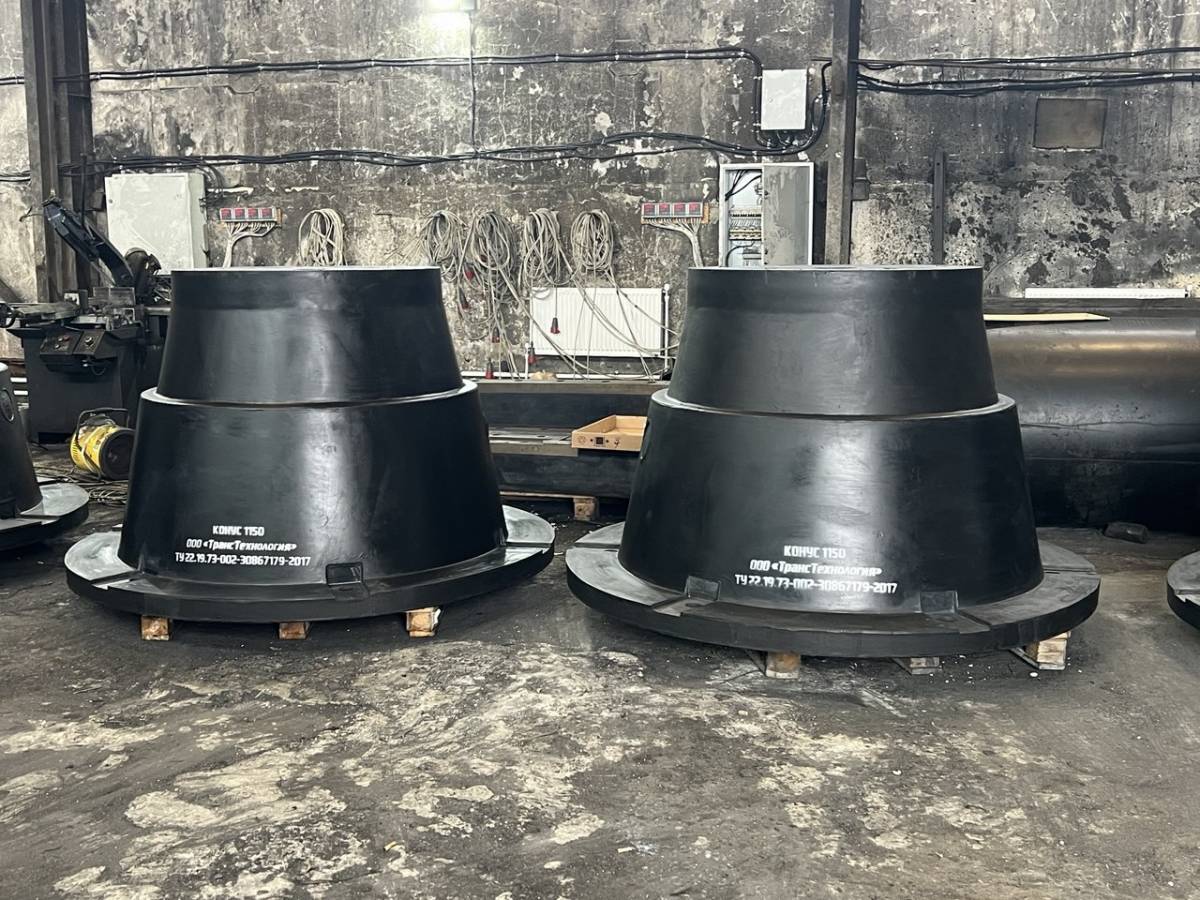

Fender devices of the «Cone» type - an efficient rubber type of fenders used in various applications. It has a conical body and fully mounted rubber mounting flanges. Its geometry and conical shape result in a range of high-performance characteristics.

Get a commercial offer

Features

The cone has a more advanced design with increased deflection, high energy absorption, and a longer service life.
Versatile characteristics meet numerous design requirements.
Diverse characteristics are available by selecting the composition of the rubber compound.
The front panel and face panel can be installed to reduce shear load.
Easy to install and replace

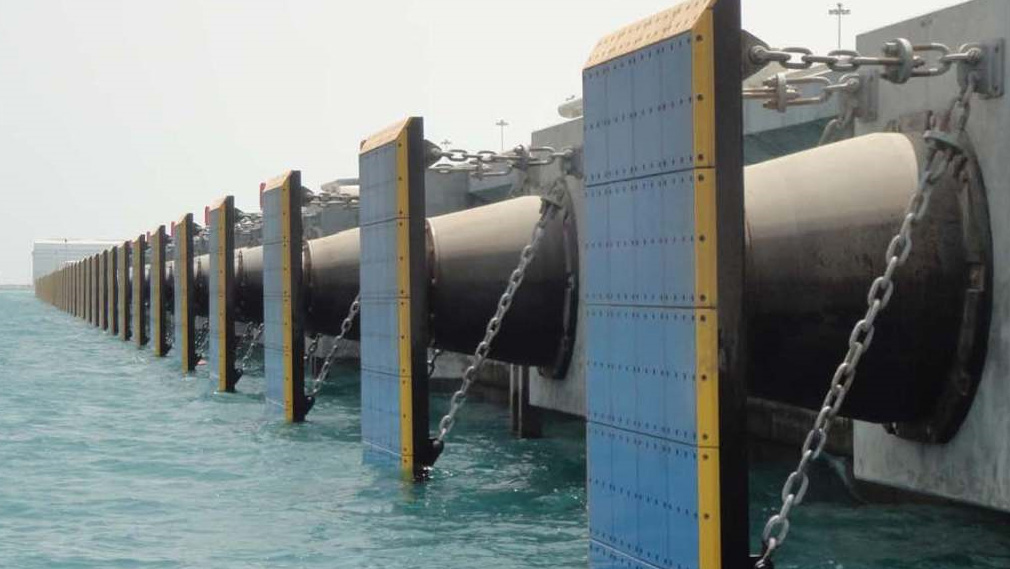

Applications:

Nominal compression deformation: 70%

Type	Highest reaction force (FS)		High reaction force (FE)		Normal reaction force (FO)		Low reaction force (FL)
	Reaction force (KN)	Energy absorption (KN-M)	Reaction force (KN)	Energy absorption (KN-M)	Reaction force (KN)	Energy absorption (KN-M)	Reaction force (KN)	Energy absorption (KN-M)
FCO500	342	80. 6	273	64. 3	204	47. 9	168	37. 7
FCO600	490	160	390	130	289	95. 9	230	76. 5
FCO700	665	240	532	185	320	153	314	122
FCO800	879	375	720	300	512	229	410	183
FCO900	1099	504	879	407	648	312	518	260
FCO1000	1366	682	1100	552	800	505	641	357
FCO1100	1459	847	1169	663	946	446	816	416
FCO1150	1799	1050	1420	900	1059	679	847	543
FCO1200	1883	1115	1526	971	1128	719	908	571
FCO1300	2168	1617	1739	1336	1346	1064	1148	765
FCO1400	2300	1720	1840	1376	1472	1101	1173	877
FCO1600	3084	2467	2313	1974	1850	1579	1446	1259
FCO1800	3825	3609	3060	2887	2449	2309	1950	1840

Note: Allowable error ±10%.

Maximum compression deflection: 72.5%

Type	Highest reaction force (FS)		High reaction force (FE)		Normal reaction force (FO)		Low reaction force (FL)
	Reaction force (KN)	Energy absorption (KN-M)	Reaction force (KN)	Energy absorption (KN-M)	Reaction force (KN)	Energy absorption (KN-M)	Reaction force (KN)	Energy absorption (KN-M)
FCO500	388	91. 8	317	71 . 4	237	51	197	41. 8
FCO600	553	164	438	132	325	106	263	86. 7
FCO700	705	248	579	196	435	157	348	127
FCO800	949	388	850	322	588	257	437	212
FCO900	1213	527	976	440	717	341	569	275
FCO1000	1537	750	1237	600	900	488	712	388
FCO1100	1601	882	1284	695	1039	538	850	441
FCO1150	2025	1125	1625	957	1175	731	937	600
FCO1200	2086	1172	1698	1018	1252	754	1005	599
FCO1300	2358	1673	1938	1387	1567	1099	1224	816
FCO1400	2556	1791	2045	1433	1636	1147	1304	914
FCO1600	3213	2570	2570	2056	2056	1645	1606	1311
FCO1800	4249	3760	3400	3007	2720	2406	2168	1918

Note: Allowable error ±10%.

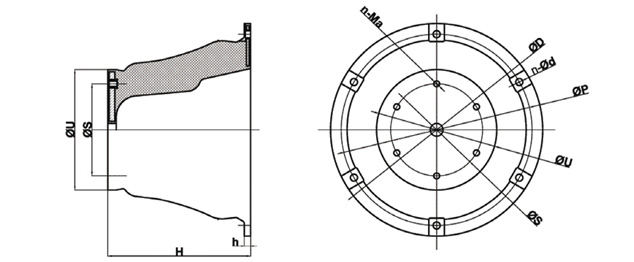

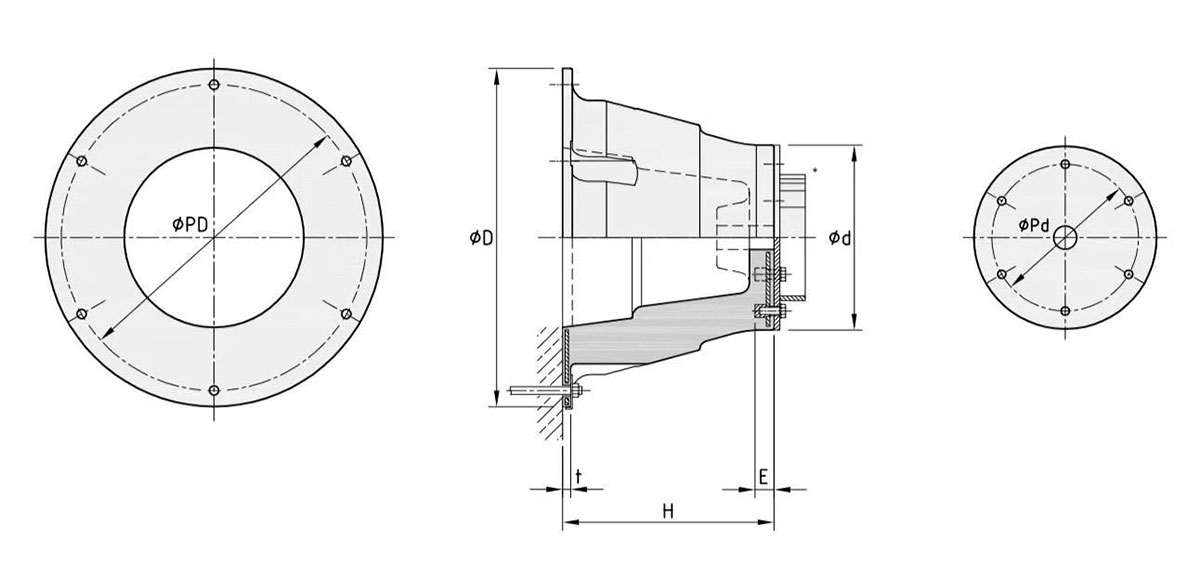

Type	Specification
Type	H	ΦU	ΦS	ΦP	ΦD	Holes	n-Ma	n-Φd	h
FCO500	500	425	325	675	750	4	M24	30	25
FCO600	600	510	390	810	900	6	M24	30	27
FCO700	700	595	455	945	1050	6	M30	38	32
FCO800	800	680	520	1080	1200	6	M36	44	36
FCO900	900	765	585	1215	1350	6	M36	44	41
FCO1000	1000	850	650	1350	1500	6	M42	56	45
FCO1100	1100	935	715	1485	1650	6	M42	50	50
FCO1150	1150	998	750	1550	1725	6	M42	56	52
FCO1200	1200	1020	780	1620	1800	8	M42	50	54
FCO1300	1300	1105	845	1755	1950	8	M48	60	59
FCO1400	1400	1190	930	1890	2100	8	M48	60	66
FCO1600	1600	1360	1060	2160	2400	8	M48	70	72
FCO1800	1800	1530	1190	2430	2700	10	M56	76	78
Note: Rubber products of different sizes can be manufactured upon customer request.
